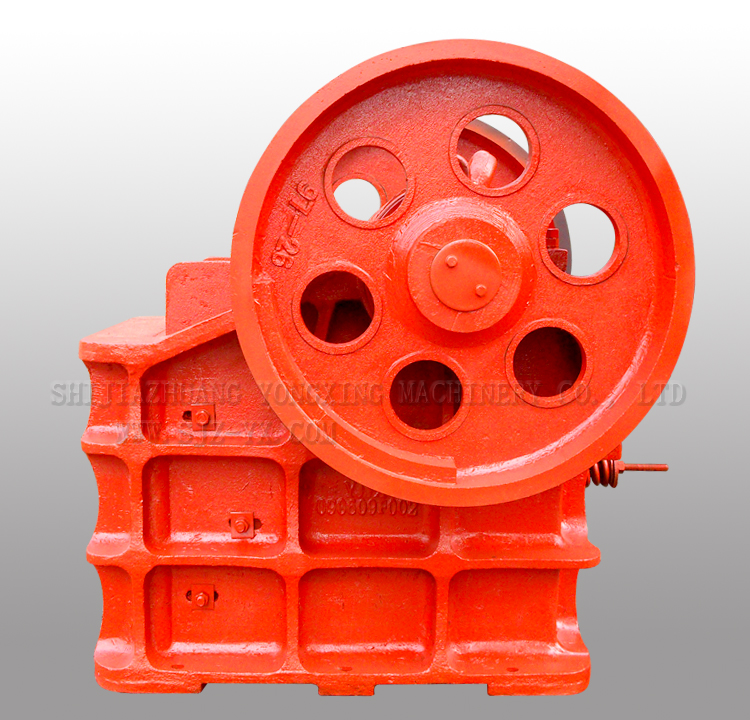

PE jaw crusher

This series of products have the characteristics of large crushing ratio, uniform product size, simple structure, reliable operation, simple maintenance and economic operation cost. Widely used in mining, metallurgy, building materials, highway, railway, water conservancy and chemical industry and other sectors, crushing compressive strength of no more than 320 MPa of various materials. During operation, the motor drives the eccentric shaft to rotate through the belt pulley, so that the moving jaw is close to and away from the fixed jaw periodically, so as to crush, rub, roll and other multiple crushing of the material, making the material gradually drop from large to small, until it is discharged from the discharge port.


Product Name: PE jaw crusher series

This series of products have the characteristics of large crushing ratio, uniform product size, simple structure, reliable operation, simple maintenance and economic operation cost. Widely used in mining, metallurgy, building materials, highway, railway, water conservancy and chemical industry and other sectors, crushing compressive strength of no more than 320 MPa of various materials. During operation, the motor drives the eccentric shaft to rotate through the belt pulley, so that the moving jaw is close to and away from the fixed jaw periodically, so as to crush, rub, roll and other multiple crushing of the material, making the material gradually drop from large to small, until it is discharged from the discharge port.

Main technical parameters：

Model	Feed port size（mm）	Maximum feed size（mm）	Adjustment range of discharge port（mm）	processing capacity (T/H)	Eccentric shaft speed (prm)	Motor power (Kw)
Model	Feed port size（mm）	Maximum feed size（mm）	Adjustment range of discharge port（mm）	processing capacity (T/H)	Eccentric shaft speed (prm)	Motor power (Kw)
PE-60X100	60X100	45	3－10	0.2－0.6	470	1.1
PE-150X250	150X250	125	10－40	0.6－3	300	5.5
PE-250X400	250X400	210	20－60	3－13	300	15
PE-250X500Ⅰ	250X500	210	20－80	5.7－31	300	18.5
PE-250X500Ⅱ	250X500	210	20－80	5.7－31	300	18.5
PE-400X600	400X600	340	40－100	10－34	275	30
PE-430X600	430X600	400	90－140	35－60	275	37
PE-475X1050	475X1050	400	90－140	37.5－81	275	55
PE-500X750	500X750	425	50－100	20－52	275	55
PE-600X750	600X750	500	150－200	50－100	250	55
PE-600X900	600X900	500	65－160	30－75	250	55－75
PE-620X900	620X900	500	95－145	31－70	250	55－75
PE-670X900	670X900	520	195－245	66－83	250	55－75
PE-750X1060	750X1060	630	80－140	72－130	250	110
PE-800X1060	800X1060	640	100－200	85－143	250	110
PE-870X1060	870X1060	660	200－260	181－210	250	110
PE-900X1060	900X1060	685	230－290	100－250	250	110
PE-900X1200	900X1200	750	95－165	87－164	200	110
PE-1000X1200	1000X1200	850	195－265	197－214	200	110
PE-1200X1500	1200X1500	1020	150－300	250－500	180	160
PEX-100X600	100X600	80	7－21	2－8	330	7.5
PEX-150X750	150X750	120	18－48	5－16	320	15
PEX-200X1000	200X1000	160	20－55	6.9－23.8	330	22
PEX-250X750	250X750	210	25－60	8－22	330	22
PEX-250X1000	250X1000	210	25－60	10－32	330	30－37
PEX-250X1200	250X1200	210	25－60	13－38	330	37
PEX-300X1300	300X1300	250	20－90	10－65	330	75
